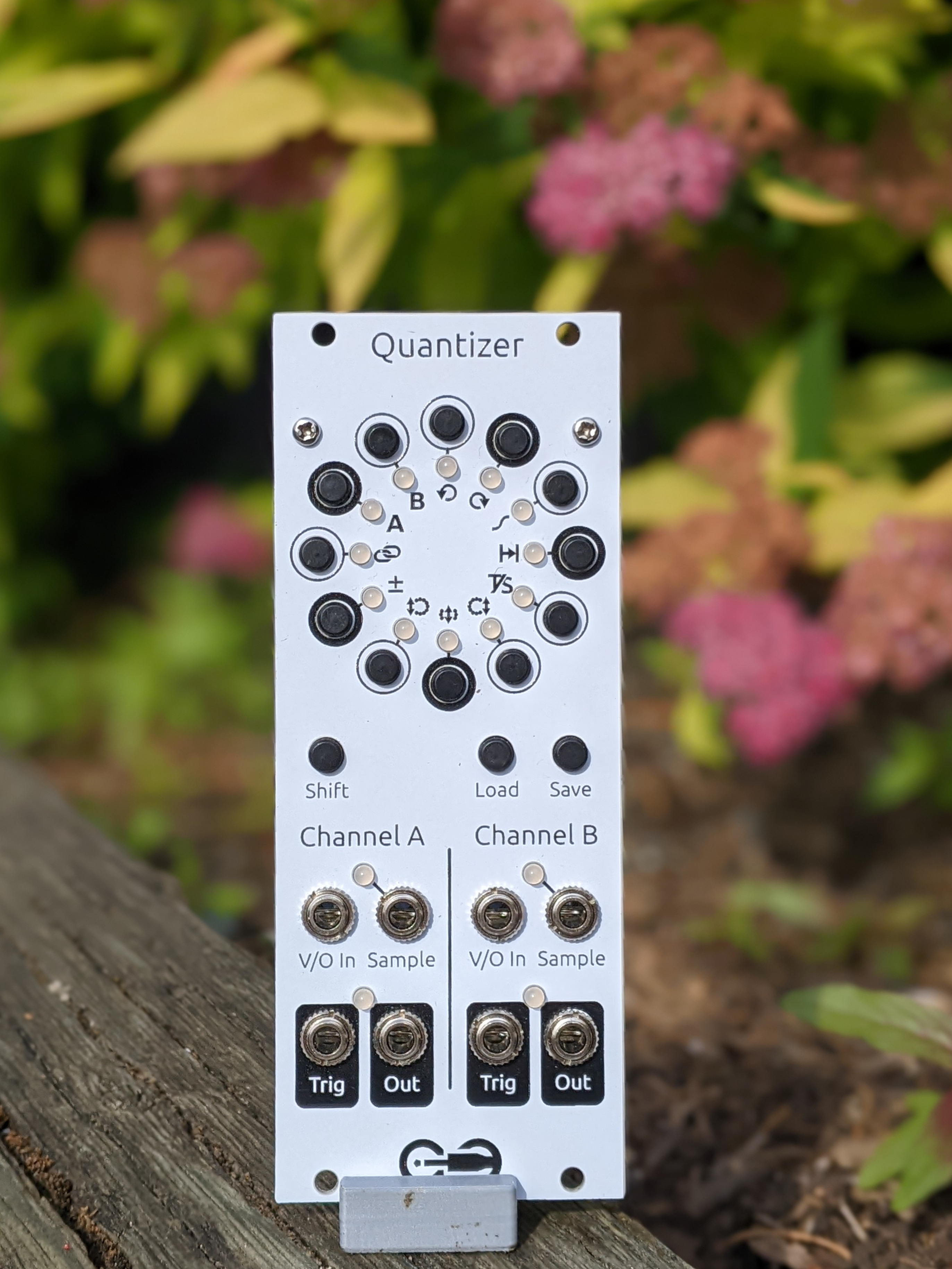

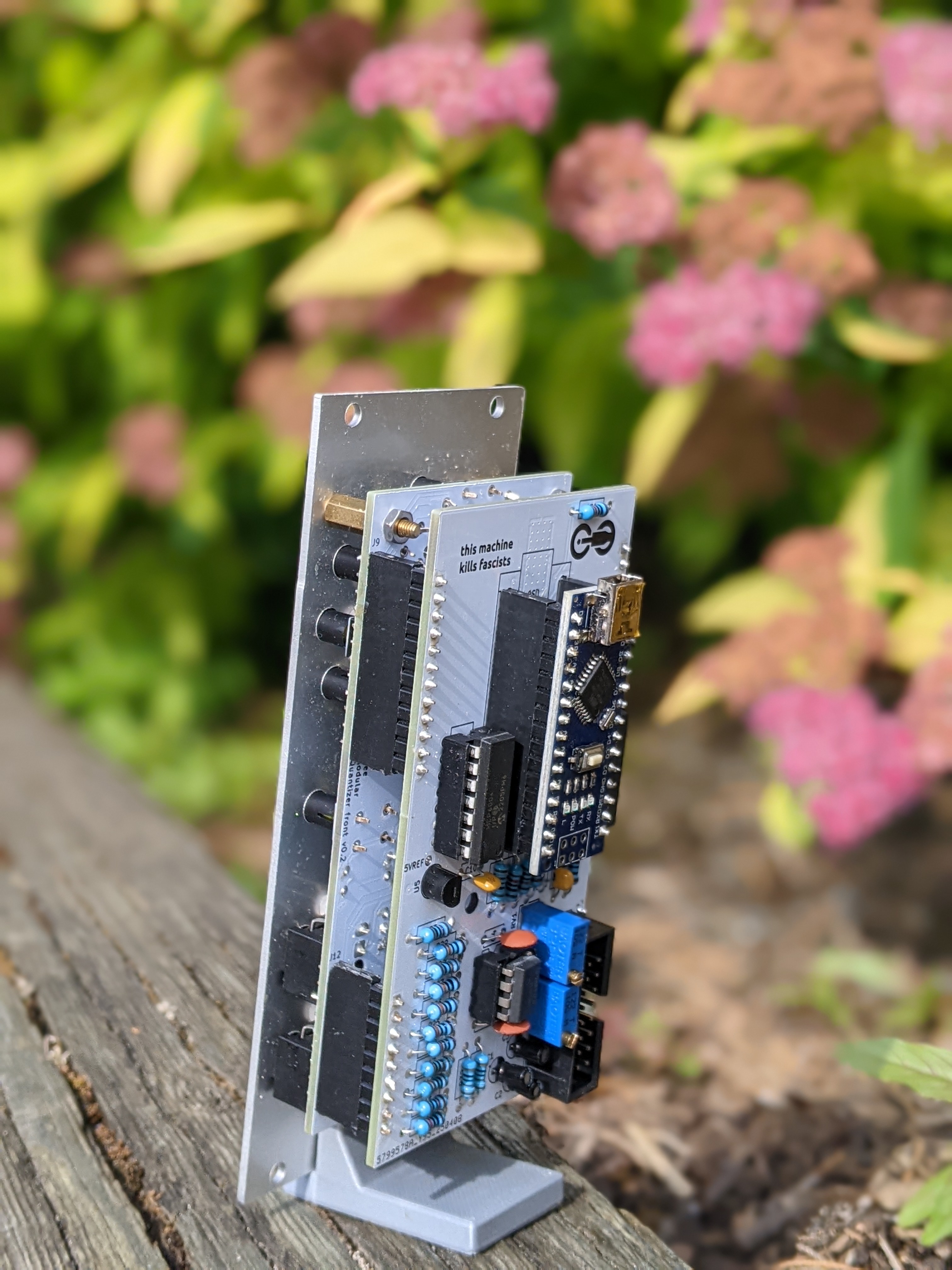

Quantizer

A 2-channel quantizer to round v/oct pitch signals to a musical scale.

The two channels can be totally independent or linked together. Each channel has adjustable transposition, delay, and portamento, with sample-and-hold, track-and-hold, or continuous quantization. Quantization scales can be set note-by-note, and also saved and recalled from persistent storage.

Resources

• Manual
• Assembly instructions and BOM
• Interactive BOM: front panel, back panel
• Faceplate stencil SVG
• GERBER files:
  • Faceplate: JLCPCB, PCBway
  • Front panel: JLCPCB, PCBway
  • Back panel: JLCPCB, PCBway
• Tayda quick-order CSV (incomplete)
• Firmware HEX
• Source code
• Schematic

Details

DIY difficulty: Hard (One HTSSOP surface-mount part w/ ~.5mm pin pitch; everything else is easy)
HP: 10
Power usage:

	Maximum current
+5V	90mA
+12V	20mA
-12V	20mA

Available on Etsy

You can buy PCBs, full kits, or hand-assembled modules directly from me on Etsy
